The Starway three-axle flatbed semi-trailer is a versatile and reliable vehicle designed specifically for transporting containers and bulk cargo. It is equipped with 12 twist locks to safely transport 20ft and 40ft containers, with customizable loading capacities ranging from 40 to 60 tons depending on your specific shipping requirements.
This model offers a high degree of flexibility and versatility. When shipping containers, twist locks hold cargo securely in place. For bulk cargo, the twist lock can be lowered to align with the flatbed, allowing for easy and efficient loading of other types of cargo.
Flatbed trailers are customizable in size, with options of 20 ft, 40 ft, 53 ft, 65 ft and other sizes to meet different cargo needs. In addition, the loading capacity can be customized to accommodate 20 tons to over 100 tons, ensuring that it meets the needs of heavy-duty transportation.
Starway three-axle flatbed semi-trailers provide a reliable solution for a variety of logistics needs, providing safety, efficiency and adaptability for transporting containers and bulk materials.

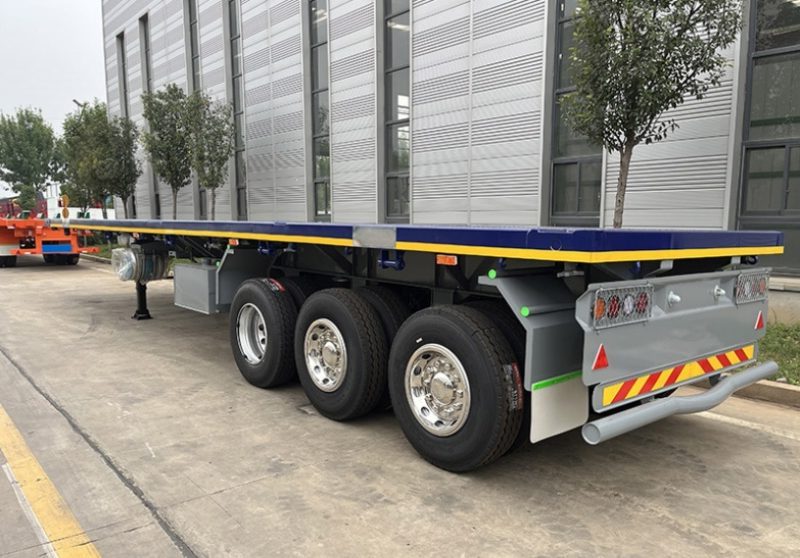

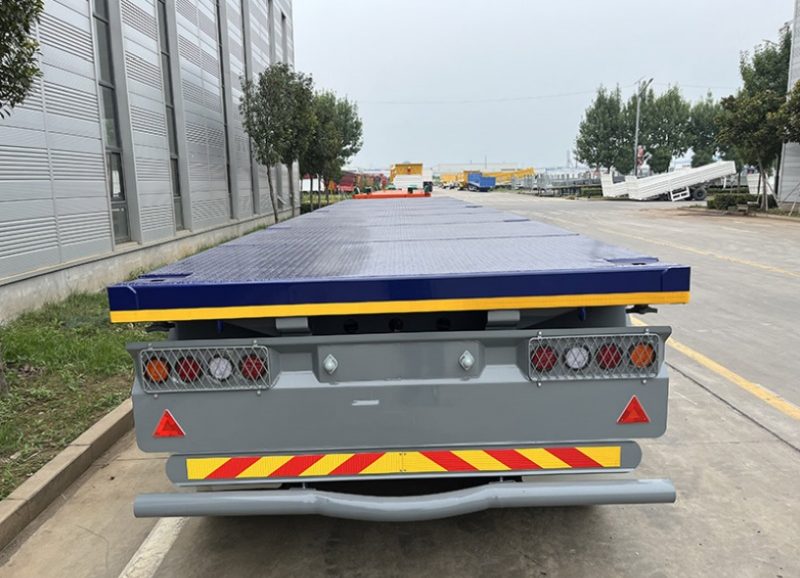

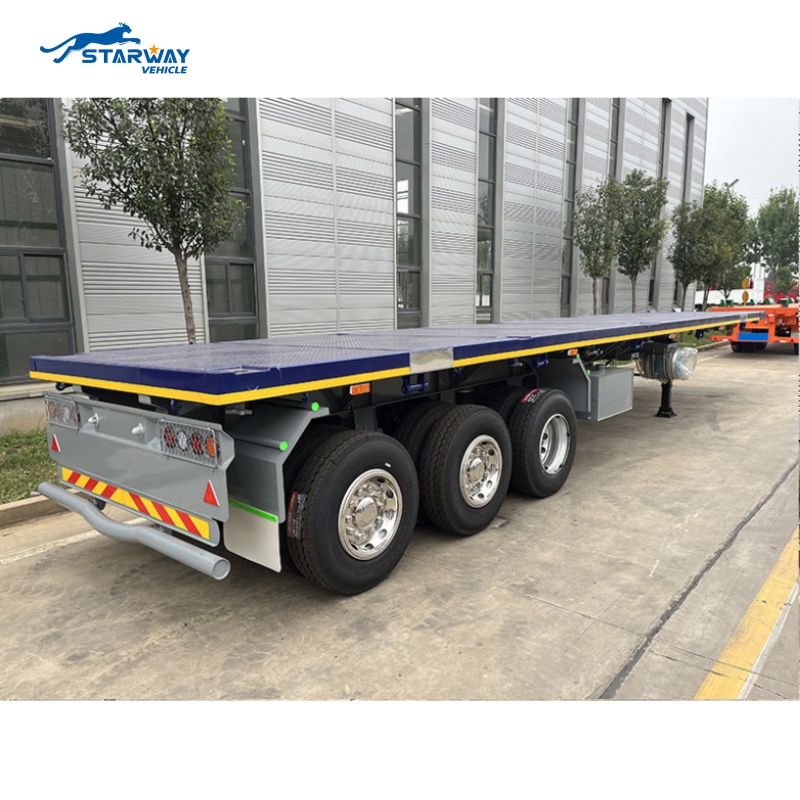

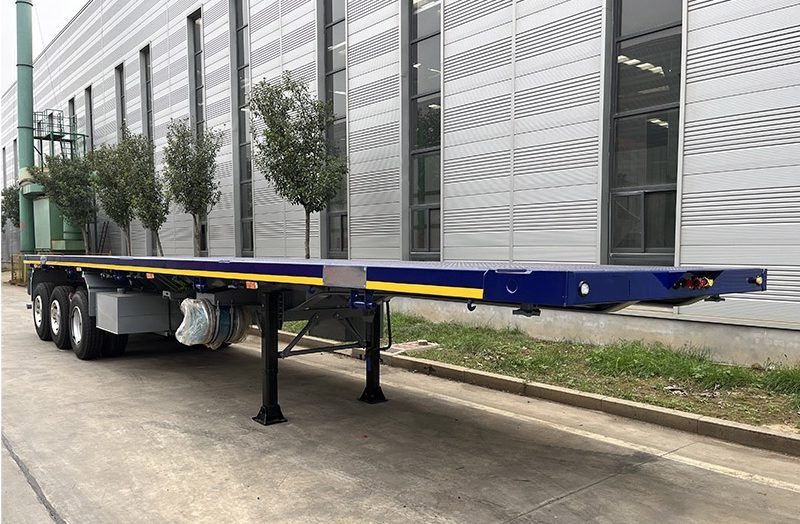

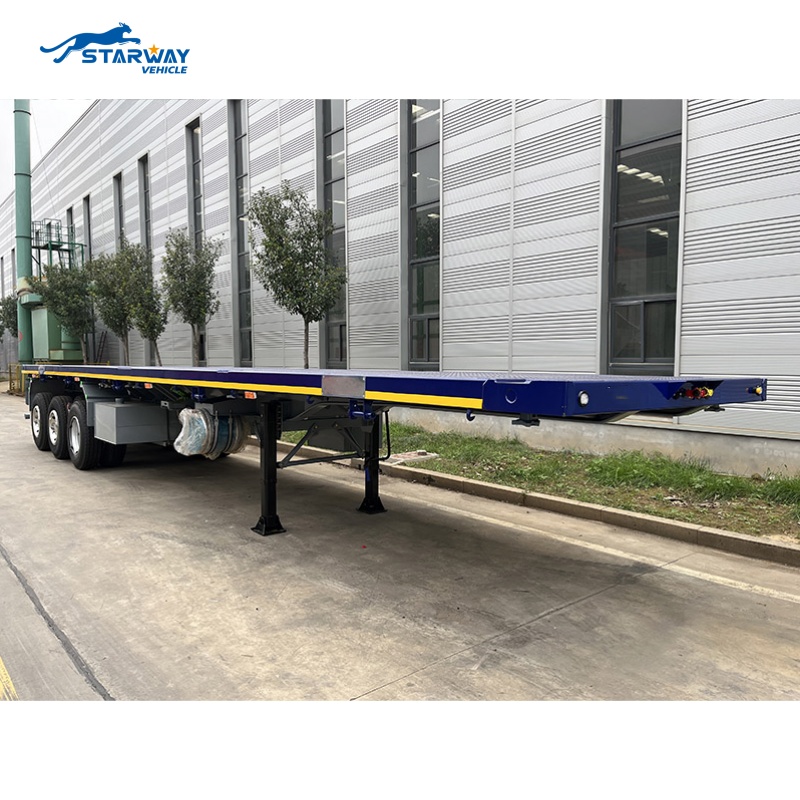

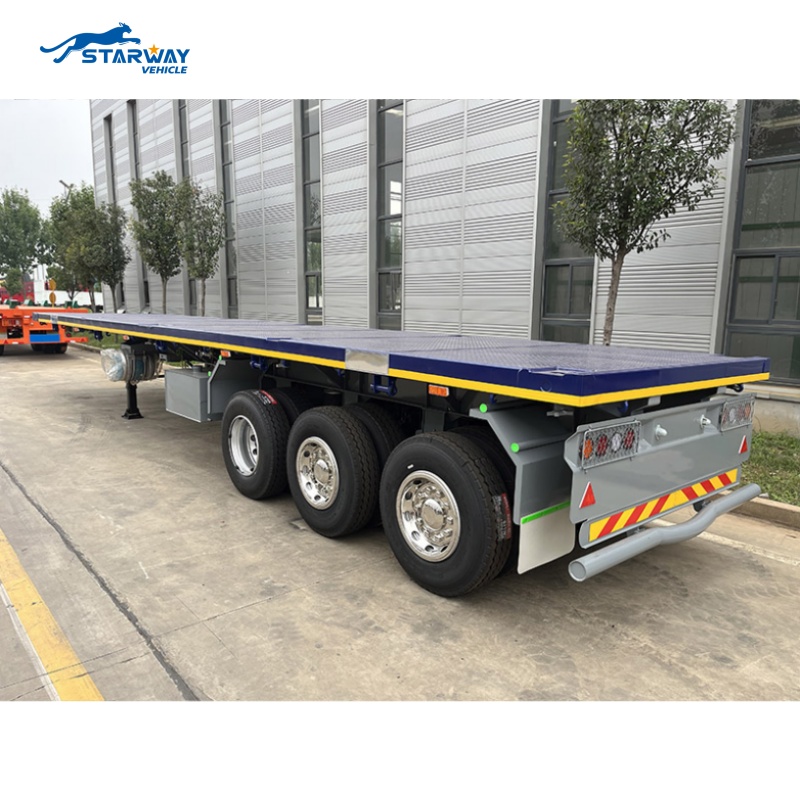

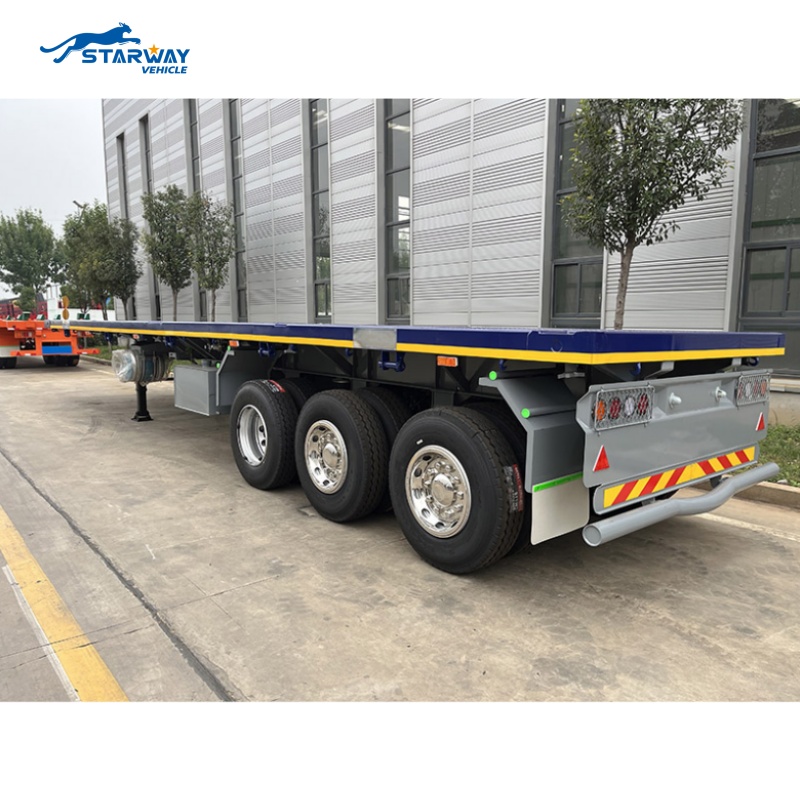

3 Axle 40Ft Flatbed Semi Trailer On Sale
3 Axle 40Ft Flatbed Semi Trailer On Sale
3 Axle 40Ft Flatbed Semi Trailer On Sale
3 Axle 40Ft Flatbed Semi Trailer On Sale
The Specification of STARWAY VEHICLE flatbed semi trailer :
Dimension :12500x2500x1580mm
Main beam:material Q345B,”H” beam height:500mm ,top/middle /bottom;12/6/14 mm
Side beam :#16 channel steel
Loading capacity :45 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire:12R22.5x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T
Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame
Braking System :Dual line pneumatic brake, SAE hose and connector,without ABS
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
